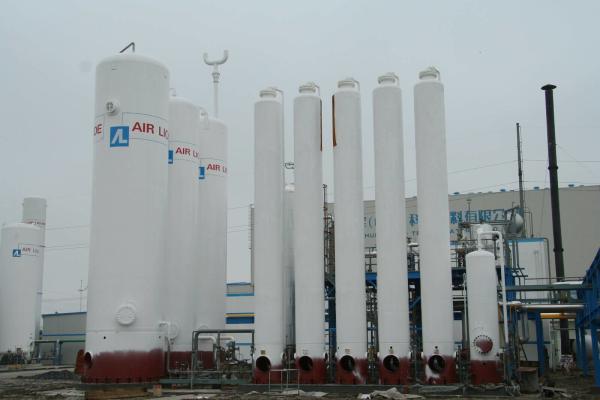

Full Automation Operation Hydrogen Production Plant By Methanol Reforming

How does the methanol reforming plants work?

The methanol reforming hydrogen generation plant is common alternation while the hydrocarbons are inaccessible. [when there is no any hydrocarbon source.]

Methanol mixture wither demineralized water (DM water) is vaporized and superheated and converted into syngas in prescience of Cu-based catalyst [ copper catalyst]. The syngas is cooling down to the ambient temperature and then feed into a PSA system to purify the high hydrogen purity.

Please refer to the following diagram as the block schematic of methanol reforming.

The thermal oil is used to maintained the reaction heat required by the methanol cracking.

Features of methanol reforming plant

• Design for long service life

• High reliability

• High quality and safety standard

• Full automation operation

• Prefabrication in skid or modules

Additional features

• Air coooling is available for the water-deficient area;

• Flameless technology could be used for the thermal oil [catalystic combustion]

• Low NOx

• Low land requirement

• Scope of supply is flexible.

• International standards and certificate is applicable, if any required, such as ASME/ANSI, TR CU.

Performance of methanol reforming plant

• Feedstock: methanol

• Hydrogen capacity: 5 ~ 100,000 Nm3/h

• Hydrogen pressure: 7 ~ 30 barg

• Hydrogen purity: typically 99.99%; up to 99.9999 vol.%

Founded in 2000, Ally Hi-Tech is an engineering company dedicated to providing engineering service of industrial gas, especially hydrogen.

From design, construction to on-site guidance, after-sale maintenance, Ally has professional teams and provide our clients with customized service. Ally Hi-Tech has been focusing on the innovation of related technology and obtained 38 Chinese patents, 1 European patent, 1 American patent.

Owing to the advanced core tech, Ally participated in 6 national projects including Hydrogen projects of 2008 Olympics and 2020 Expo, while we also provide hydrogen for all the satellite launch centers in China.

Hydrogen production and hydrogen purification is the main business of Ally Hi-Tech.

We participated in the draft of the standards of hydrogen generation by methanol-reforming. As a member of the Chinese hydrogen standard committee, Ally Hi-Tech also took part in the editing of 6 Chinese standards and 1 international standard related to hydrogen.

By now, Ally Hi-Tech has delivered more than 500 units all over the world and built up cooperative relationships with a lot of clients, such as Air Liquide, Linde, Praxair, BP, Iwantani Group, etc.
